Feature |
items |
parameter |
|
size |
Power box size(L×W×H) |
353×200×197mm |
|
Lamp box(L×W×H) |
282×170×165mm |
|
|
lamp |
Uv lamp |
Uv lamp |
|
watt |
400W,500W,1,2,3kw(optional) |
|
|
Arc length |
120mm |
|
|
wave peak |
385nm |
|
|
Average life |
600~800 hours |
|
|
power |
Power request |
220V |
|
Total power |
1.1kw |
|
|
Total weigth |
15kg |
Color: Black,Red or other
Application:
1. Floor paint curing, model making, handicraft molding, scientific experiments.
2. Shaped UV curing, model making, arts, crafts.
3. Suitable for furniture, flooring and other surface glazing, artificial stone (marble surface polish) site construction.
4. Applicable to UV glue, laboratory, temporary construction and maintenance can be use with conveyor belt.
Characteristic:

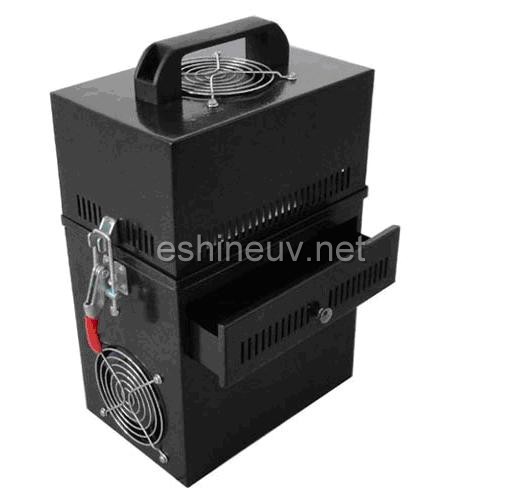

1. The machine is easy to use, split type(including power box and light box two parts), can be arbitrarily fixed.
2. Working power supply 220V/380V 50Hz-60Hz, power saving and low noise.
3. 1-2 small axial flow fan is used to cool the lamp tube.
4. This machine is equipped with leakage proof power switch.
5. Actively reduce the temperature in the power supply box, improve the service life of the ballast and the electrical switch.
